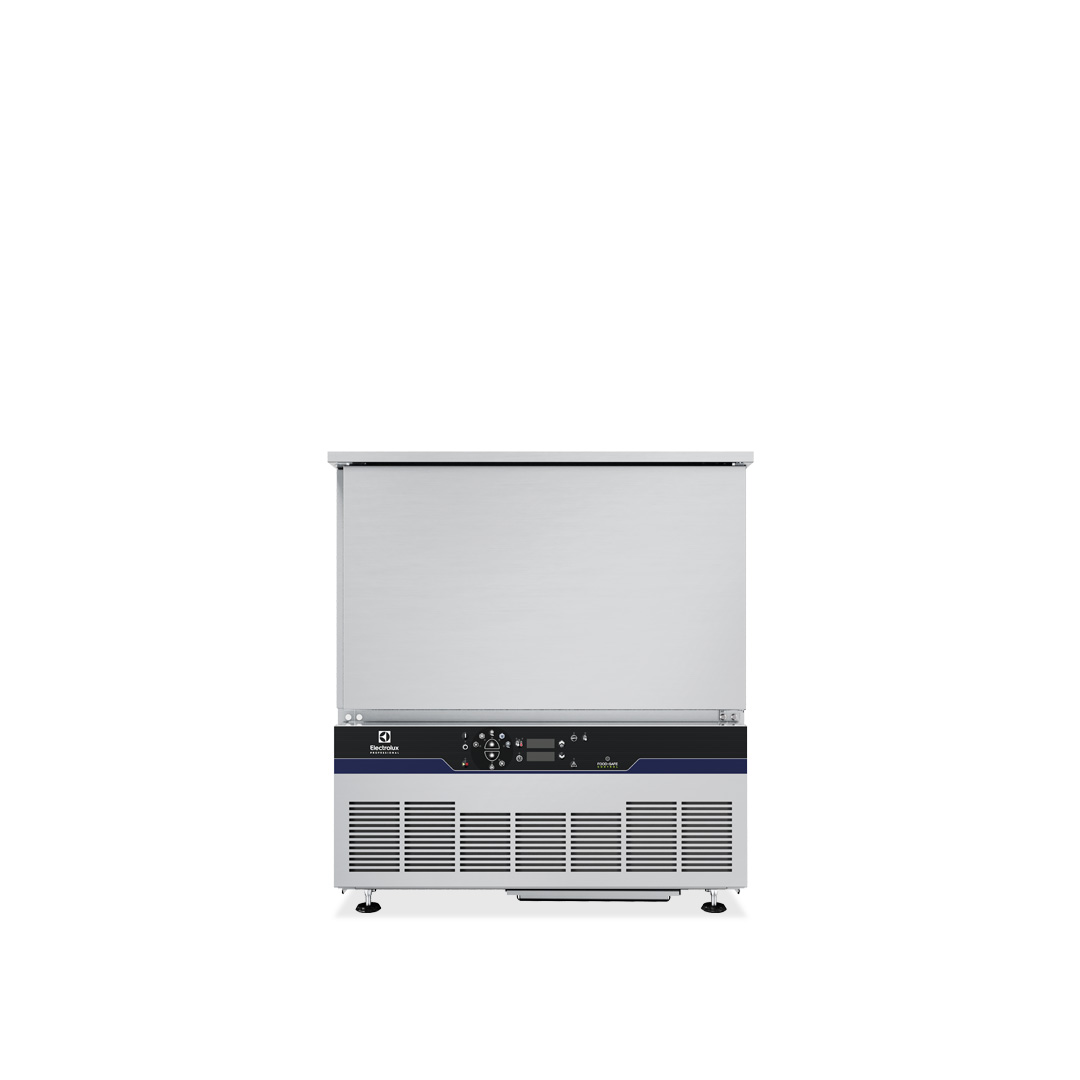

CROSSWISE 5 x 1/1GN Blast Chiller Freezer 5/15kg
The Electrolux Professional CROSSWISE 5 x 1/1GN Blast Chiller Freezer is a compact undercounter solution for commercial kitchens requiring rapid chilling and freezing in a space-efficient format. Designed for use with compatible 6 x 1/1GN CROSSWISE convection ovens, it provides controlled temperature reduction and holding for professional food production while supporting food safety and HACCP requirements.
With a 15 kg chilling and 5 kg freezing capacity, the unit offers Soft Chilling and Hard Chilling cycles for different food types, along with Turbo Cooling and controlled thawing functions. A single-sensor core probe is supplied as standard, while ARTE technology estimates remaining cycle time to assist with production planning. At the end of a chilling or freezing cycle, automatic holding maintains the cavity at +3°C or -20°C to help preserve the required temperature.
Built for demanding commercial environments, the CROSSWISE features an integrated R290 refrigeration system, 60 mm HCFC-free polyurethane insulation and AISI 304 stainless steel construction. The reversible door, heated door frame and swing-out evaporator panel simplify installation, cleaning and maintenance, while the dual display provides clear information on cycle times, core temperature, alarms and service status. No water connection is required, and the unit is designed to operate in ambient temperatures up to 40°C.
Key Features:
- 5 x 1/1GN undercounter blast chiller freezer
- 15 kg chilling capacity
- 5 kg freezing capacity
- Soft Chilling and Hard Chilling cycles
- Turbo Cooling function for continuous production
- Controlled thawing cycle
- Automatic holding at +3°C for chilling or -20°C for freezing
- ARTE technology for remaining cycle time estimation
- Single-sensor core probe included
- Optional 3-point core probe available
- Multi-purpose interior for GN containers, bakery trays and ice cream basins
- Built-in R290 refrigeration system
- No water connection required
- Automatic and manual defrosting
- Automatic heated door frame
- Reversible door for flexible installation
- 60 mm HCFC-free polyurethane insulation
- AISI 304 stainless steel construction
- IP21 protection
- Suitable for ambient temperatures up to 40°C
- Dual display for time, core temperature, cycle countdown, alarms and service information
- HACCP monitoring capable
- Connectivity ready for optional remote monitoring and HACCP data management
- Made in Italy
DIMENSIONS:
- 762mm W x 708mm D x 850mm H
- Specification Sheet
- Brochure
- CAD File
- Warranty - 24 months parts & 24 months labour. For full details, visit our warranty page
